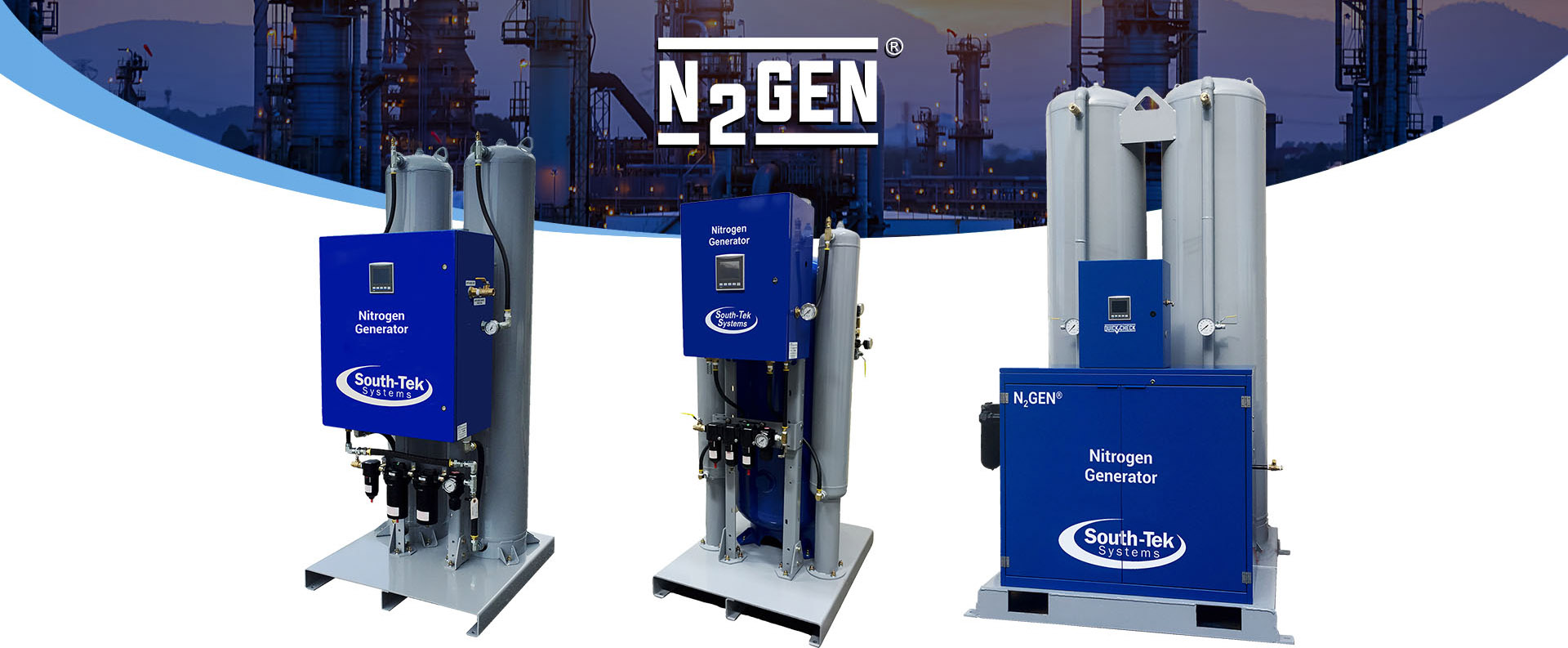

N2GEN: Mission-Critical Nitrogen™ Generators for Power and Utility Plants
A Nitrogen Gas Generator from South-Tek Systems is the most convenient, economical, and safe way to provide reliable supply of N2 gas for power plant boiler layup and other utility applications. Nitrogen gas has been utilized successfully in power plant boilers for years and has been proven to protect against corrosion in boiler tubes, deaerators, and drums – the entire boiler circuit.
South-Tek Systems’ mission-critical nitrogen™ generators are a low-cost, safe alternative to N2 gas deliveries in high pressure cylinders. It provides an unlimited supply of high purity Nitrogen gas at the point of process and eliminates the need for ordering Nitrogen dewars, high pressure cylinders, or bulk liquid tank fills.
- Up to 99.9995% pure nitrogen on-demand
- 50-90% savings when compared to liquid bulk
- Fast payback with an average ROI of 12-14 months
- Eliminate deliveries and contracts
- Dual-bed, PSA (Pressure Swing Adsorption) technology
- Smart-Trak – Touchscreen control display; remote monitoring with mobile devices (select models)
- 18-24 year system life, dependent on maintenance
N2GEN Industrial Series for Power and Utility Plants
Generators are customized to deliver the exact purity and flowrate your process requires
- Tank mounted skid series
- 95-99.999% Nitrogen purity
- Flow rates up to 300 SCFH*
- Duplexing options are available
- Optional turnkey package includes dedicated air compressor, dryer and/or booster
- Cabinet skid series
- 95-99.999% Nitrogen purity
- Flow rates up to 2,400 SCFH*
- Duplexing options are available
- Optional turnkey package includes dedicated air compressor, dryer and/or booster
- Skid series
- 95-99.999% Nitrogen purity
- Flow rates up to 35,000+ SCFH*
- Duplexing options are available
- Optional turnkey package includes dedicated air compressor, dryer and/or booster
*Flow rates dependent on nitrogen purity and pressure specifications
Mission-Critical Nitrogen™ Use in Power Plants
Oxygen is displaced within wet parts with a low pressure slow flow nitrogen purge, ultimately inhibiting the oxidation/corrosion process.
Applications include tank and process nitrogen blanketing at LNG plants, transfer and line protection for natural gas production, sparging of demineralized boiler water tanks, and many other Nitrogen gas needs for power and utilities plants.
South-Tek’s N2GEN mission-critical nitrogen™ systems allow you to reliably create Nitrogen from thin air, in-house and on-demand.
Nitrogen Use in Water Treatment
Oxygen is displaced within wet parts with a low pressure slow flow nitrogen purge, ultimately inhibiting the oxidation/corrosion process.
Applications include tank and process nitrogen blanketing at LNG plants, transfer and line protection for natural gas production, sparging of demineralized boiler water tanks, and many other Nitrogen gas needs for power and utilities plants.
South-Tek’s N2GEN mission-critical nitrogen™ systems allow you to reliably create Nitrogen from thin air, in-house and on-demand.
Cost Comparison
Making the switch to Nitrogen generation removes the middleman (gas supplier) and increases factory self-sustainability. No more long-term contracts or gas delivery hassles. N2GEN systems provide meaningful cost-savings and quick ROI with a long 18-24 year system life (dependent on maintenance).
| Supply | On-going Deliveries | Long-term Contracted Purchase | Cost /CCG |
|---|---|---|---|
| High Pressure Bottles | Yes | Yes | Up to $25.00+ / CCF |
| Liquid Dewar | Yes | Yes | Up to $5.50+ / CCF |
| Liquid Bulk Tank | Yes | Yes | Up to $1.00+ / CCF |
| N2GEN Nitrogen Generator | No | No | As low as $0.10 / CCF |
Smart-Trak Mobile Monitoring and Management
A powerful software/user interface, Smart-Trak offers unprecedented control and testing capabilities for the end-user. Smart-Trak allows you to access information such as equipment runtime, time in air bypass mode, current system status and maintenance reminders. Remotely monitor and manage your nitrogen generator from any mobile device.
